Delta Optical Stryker HD 5-50x56 SF riflescope with DLS 1 / DLS 2 / DLS 3 (MOA), DO-25(04/06/07)

CODE : DO-2504 / DO-2507 / DO-2508

Description

This riflescope has been designed with sport shooters in mind, who are passionate about long-range shooting in the F-Class/Benchrest formula. It works perfectly where extreme precision is required and single points decide about victory.

There are three reticles to choose from for this riflescope. All are placed in the second focal plane, so that the size of the reticle does not change as the magnification increases. Basic zoom for measuring the size of the target or for estimating distance is 40x.

Proud users of the Stryker HD 5-50x56 are, among others, Christer Jacobsen, who is a Swedish F-Class 2017 winner and Adam MacDonald, who has won the following 2018 championships: The DCRA F-Class National Championships in Ottawa, Eastern Canada F-Class (FTR) Championship and Atlantic Championship in New Brunswick

The click value of Stryker 5-50x56 HD is 0.05 MIL which is paired with the Miliradian (MIL) based reticles: the DLS-1 & DLS-2. In metric system 1 MIL equals to 100 mm @ 100m. The reticles have been designed to correspond with the click of the scope - 1 click = 0.05 MIL (5mm).

Stryker 5-50x56 HD is also available in 1/8 MOA clicks when paired with DLS-3 reticle which is simply yet effective MOA spaced reticle.

High quality ED glass guarantees bright and sharp image, significantly reduces chromatic aberrations and greatly improves colour reproduction.

Impressive light transmission paired with central illuminated point for quick target acquisition ensures excellent optical performance even in low light conditions.

Sleek and robust 34mm diameter tube provides vertical adjustment up to 300cm. Other noteworthy features include precise and durable mechanics and parallax correction from 10m to infinity.

The lockable turrets of Styker 5-50x56 HD have been designed for deliberate hands-on or gloved usage and are equipped with a ZeroLock mechanism which allows the shooter to set a limit for elevation. The shooter will zero the riflescope at their desired shooting distance, then the ZeroLock is used to make corrections only in elevation and prevents the user from lowering the point of impact below the user defined limit

Technical data

• Serie: Stryker HD
• Magnification [x]: 5 – 50
• Minimum magnification[x]: 5
• Maximum magnification[x]: 50
• Objective lens diameter [mm]: 56
• Reticle: DLS-1, DLS-2, DLS-3
• Illuminated reticle: Yes
• Calibrated Ranging Power: 40x
• Angular field of view [° degrees]: 4.04 – 0.41
• Linear field of view at 100 m [m]: 7.1 – 0.7
• Exit pupil [mm]: 7.2 – 1.1
• Eye relief [mm]: 89-100
• Water resistance: 0.3kg/cm2
• Weight [g]: 1 100
• Length [mm]: 363
• One click: 0.05 MIL
• Max. elevation / windage adjustment range : 100 / 50 MOA
• Tube: 34 mm
• Parallax adjustment: Side focus (10 m - ∞)
• Diopter adjustment range: -2D / +3D
• Reticle position: Second focal plane(SFP)
• Functional temperature range [°C]: -20 — +71
• Nitrogen filling: Yes
• Remarks: ZeroLock
• Accessories: - Throw levers,
  - Sunshader,
  - Side Wheel (optional)

Top advantages

• 10x zoom range
• Superior ED-glass
• Sturdy and durable 34 mm tube
• Open turrets are equipped with a ZeroLock mechanism
• The scope is available with three reticles DLS-1, DLS-2 and DLS-3.

Warranty: 120 months

RETICLE TYPES:

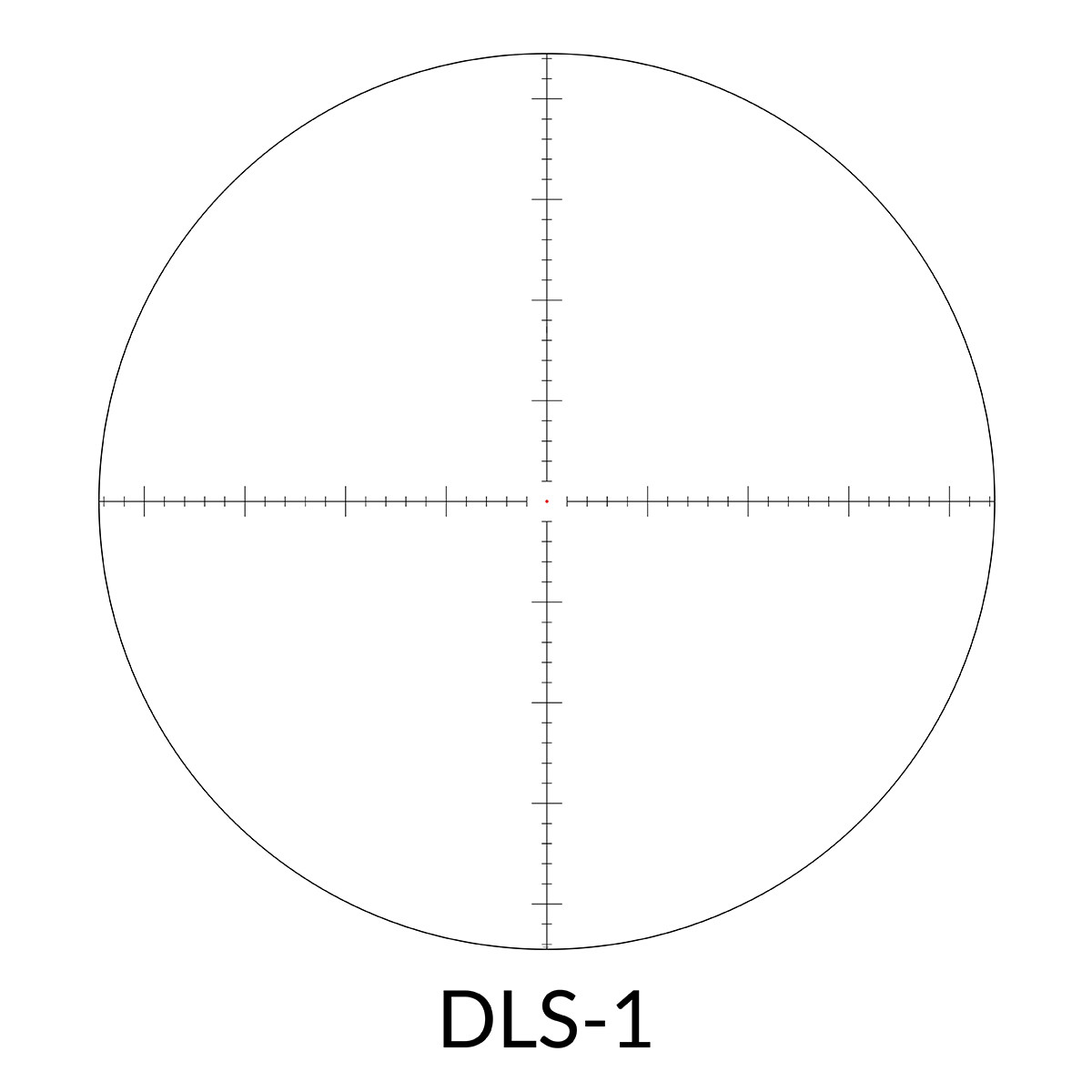

DLS-1 RETICLE

Precise target point covers only 0.03 Mil (3 mm) at a distance of 100 m! 0.005 Mil (0.5mm) crosshairs in the horizontal and vertical have markings spread in increments of 0.2 and 1 Mil (20 and 100 mm/100m respectively) for quick and easy adjustements to the projectile drop and windage correction. This second focal plane reticle will do exceptionally well at lower magnifications (7 - 10x), when the target point is 0.17 - 0.12 Mil (17-12 mm respectively), also due to the convenient day-night illumination.

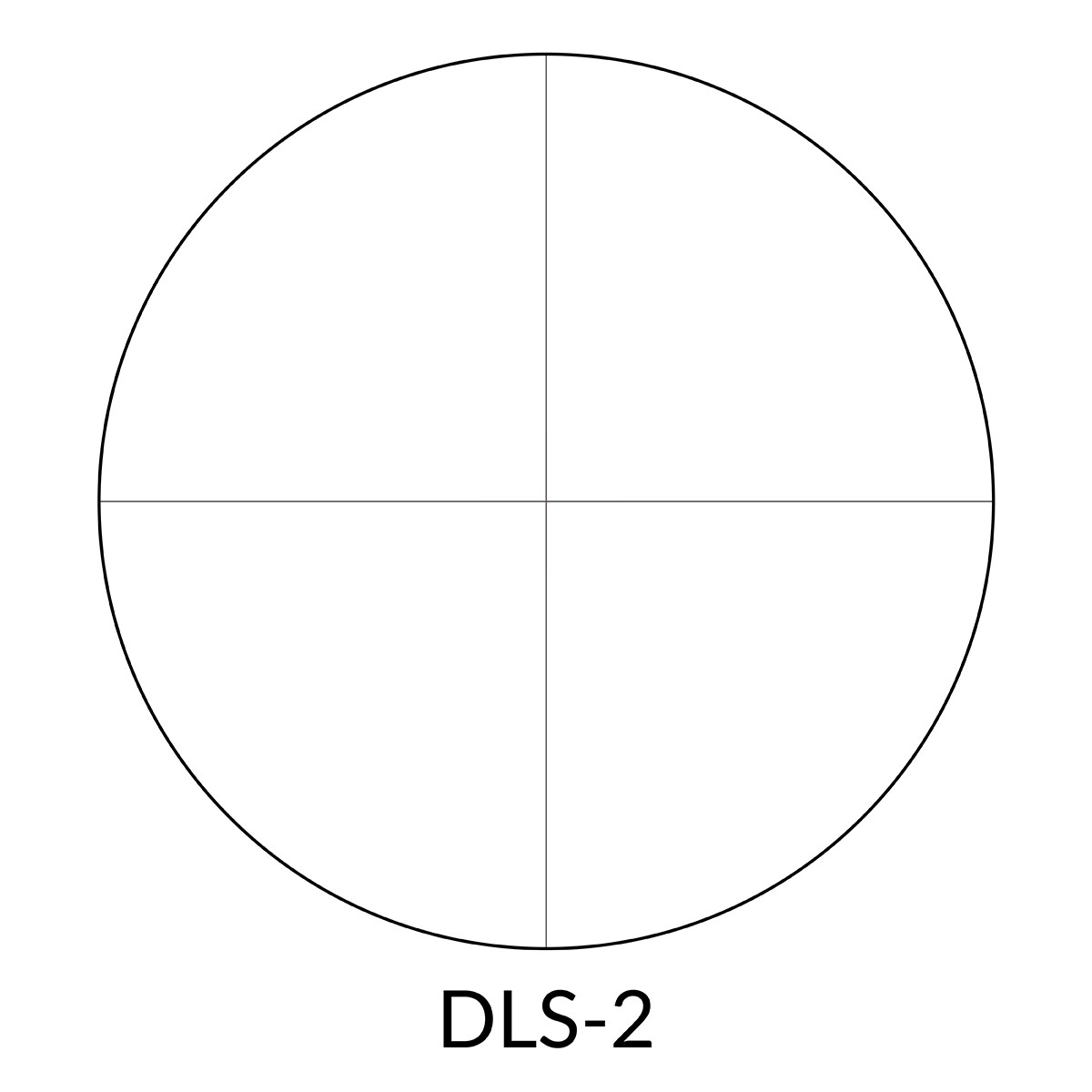

DLS-2 RETICLE

Precision in pure form. Two thin 0.005 Mil (0.5 mm 100 m) crosshairs intersect in the center at an angle of 90 degrees. Nothing can distract the eye of a shooter providing an optimal overview of the field. In the intersection there is a central illuminated target point.

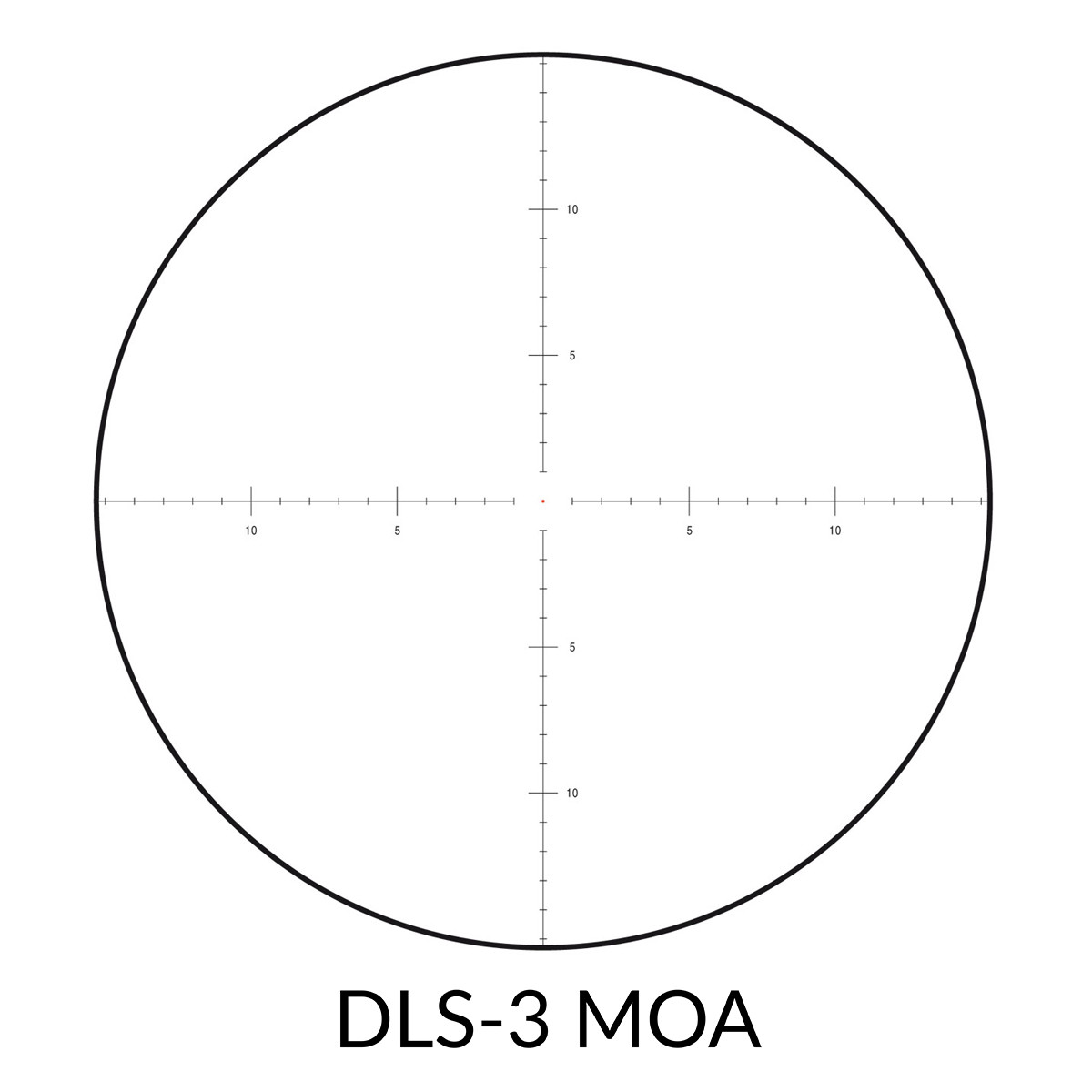

DLS-3 RETICLE

Equivalent to DLS-1 reticle, but scaled in MOA. The aiming point covers 0.1 MOA (2.91 mm) at a distance of 100 m.
All the reticles in the Stryker 5-50x56 HD series have been designed meticulously so that nothing can distract your attention whilst giving your best shots.
